Seals

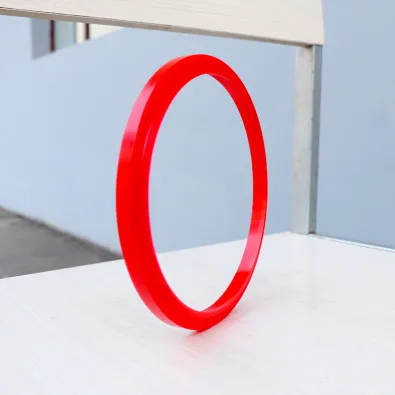

The dustproof seal is a single-acting piston seal that is installed by extruding the outer diameter. Hydraulic dust seal can effectively prevent dust and dirt from entering, and allow the residual oil to flow back.
Description
Static sealing lip to prevent mud from outer edge to enter;
Dedusting effect is good, high resistance to wear;
Special dustproof lip to return the piston rod, rod surface with thin oil film;
The inside of the sealing lip is the same as the Y ring sealing function;
The wild all-weather conditions;
material: PCL95A-62G131
HFA fluid/water: -50℃ ~ +110℃
Linear velocity: < 1 m/s
| Ra | |
| The surface of the cylinder | 0.1-0.4 |
| Groove bottom | 1.6 max |
| Groove side | 3.2 max |
| Rmax | |
| The surface of the cylinder | 0.1-0.4 |
| Groove bottom | ≤ 6.3 |
| Groove side | ≤ 15.0 |
Specification
| Operating ConditionsOperating conditions | Tolerance | Chamfers&Rad Chamfer and Radius (mm) | ||||||
| MaterialMain seal material | TemperatureTemperature range ℃ | Φ d1 | f9 | Φ d1 | ≤50 | ≤90 | ≤200 | ＞200 |
| NBR Nitrile Rubber | -30~+110 | Φ D1 | H11 | r1≤ | 0.4 | 0.4 | 0.4 | 0.8 |
| HPU Polyurethane | -45~+110 | Φ D2 | H11 | r2≤ | 0.2 | 0.4 | 0.6 | 0.8 |
| VITON Fluororubber | -30~+220 | L1 | +0.2-0 | |||||
| Speed | 1m/s | |||||||
