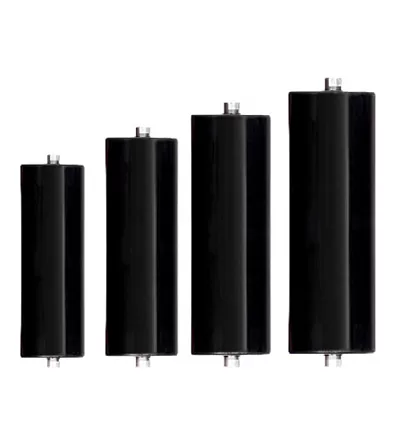

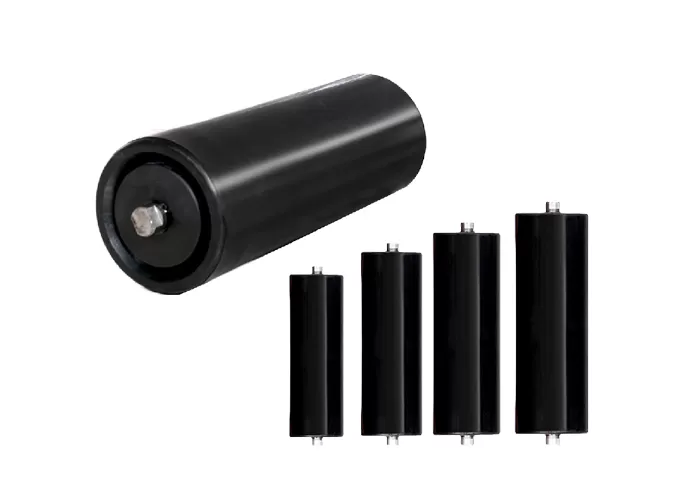

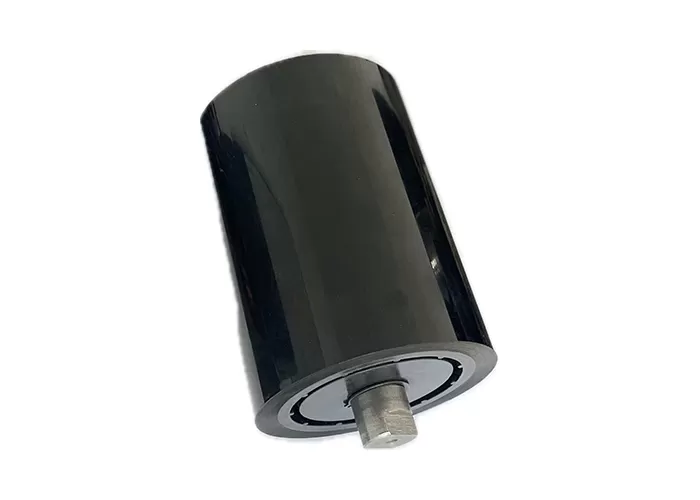

Non-metallic Industrial Conveyor Rollers

Advantage

Major advantage
Practical advantage
Industry advantage

Non-metallic oil-free rollers are a new generation of high-tech industrial mining supply developed by our company that use plastics instead of steel. The technical advantages are:
a. The tube body is made of polymer composite material, which has the advantages of flame retardancy, high wear resistance, long life, non-magnetic, no adsorption of iron powder, dust and various sticky substances, low friction coefficient with the belt, self-lubricating, etc., which greatly avoids the defects of steel rollers and ceramic rollers, thereby greatly extending the service life of the belt and avoiding damage to the belt ;
b. The design of non-metal rollers fully considers the use environment and user needs. It adopts an embedded combination design, which enables the roller to maintain better stability when bearing loads. At the same time, the bearing seat of the non-metal roller is closely connected to the cylinder, with a large load-bearing capacity, avoiding the problem of separation and scratching the belt during work, and improving work efficiency. In addition, the bearing seat of the non-metal roller is made of special materials, which is non-heat-conductive and high-temperature resistant, further improving the performance and safety of the product.
The sealing structure adopts a double labyrinth design (after immersion test, the water inflow is almost zero) and precision assembly, which completely isolates the bearing from the outside world. It can effectively protect the bearing for long-term and continuous operation, and avoid dry grinding of the belt and roller skin caused by the bearing being contaminated and not rotating. At the same time, it replaces the traditional welding process, improves the concentricity, makes the equipment run more smoothly, and extends the service life of the roller.

d bearing is a fully sealed maintenance-free bearing specially used for rollers, which has the advantages of flexible operation, long life and maintenance-free.

a. During production and use, users can reduce the replacement frequency of rollers, save labor costs and other expenses, and reduce production stoppage losses;
b. The weight of non-metallic non-lubricating oil roller is only half of that of metal roller, which is convenient for transportation, reduces the labor intensity of workers and improves work efficiency;
c. After using the non-metallic oil-free rollers produced by our company, the total weight of the conveyor is reduced by more than 20%, and the operating current is reduced by 10%. Through several years of observation and records, the conveyor equipped with non-metallic oil-free rollers can save more than 10% of electricity compared with traditional metal rollers, which improves the economic benefits of the user unit.

a. In the food industry, non-metallic rollers meet hygiene requirements, are easy to clean, and are suitable for occasions with high environmental hygiene requirements ;
b. In the pharmaceutical industry, non-metallic rollers can keep clean, prevent cross contamination, and meet the pharmaceutical industry's demand for equipment cleanliness ;
c. In the electronics industry, non-metallic rollers have low operating noise, little impact on products and the environment, and are conducive to improving product quality ;
d. In the chemical industry, the anti-corrosion performance of non-metallic rollers can effectively cope with the erosion of corrosive substances and ensure the stable operation of equipment ;
In the mining production industry, the flame retardant, high wear resistance, and non-adsorption of impurities properties of non-metallic rollers can effectively improve belt transportation and reduce the risk of accidents.

Main function

The main function of non-metallic rollers is to support and transport materials. In the conveyor belt system, rollers are responsible for supporting the conveyor belt and keeping it running smoothly. With their excellent wear resistance and corrosion resistance, non-metallic rollers can ensure that the conveyor belt can still run stably in harsh environments and reduce the possibility of failure. At the same time, the lightweight design of non-metallic rollers also reduces the energy consumption of the entire system and improves energy efficiency.

Introduction to use

Applicable Industries

Non-metal rollers are widely used in a wide range of industries, covering almost all industrial fields that require material transmission. Non-metal rollers are widely used in industries such as coal, mining, electricity, chemicals, and building materials. These industries have extremely high requirements for conveyor belt systems, and non-metal rollers provide a strong guarantee for the production of these industries with their excellent performance.

Scope of Application

The application scope of non-metallic rollers is also very wide. Whether indoors or outdoors, whether in dry or humid environments, non-metallic rollers can play their excellent performance. Especially in some highly corrosive environments, non-metallic rollers can better reflect their corrosion resistance advantages and ensure the long-term stable operation of the conveyor belt system.

Precautions for Use

When using non-metallic rollers, you need to pay attention to the following points: First, ensure that the rollers are installed firmly and stably to avoid shaking or vibration during operation; second, the rollers should be inspected and maintained regularly to detect and deal with potential problems in a timely manner; finally, during transportation and storage, the rollers should be protected from impact and extrusion to avoid affecting their performance.

Specification

The actual situation is mainly based on on-site measurement and can be customized according to actual usage requirements.

Technical parameters:

Number	Accessories	Material	Performance Description
1	Non-metallic roller tube	Ultra-high molecular weight complex	1. Meet the flame retardant and conductive properties specified in MT/T 1019-2006 "Technical Conditions for Roller Tubes for Coal Mines" and MT113-95 "Safety Performance Inspection Specifications for Non-metallic Polymer Materials for Coal Mines": A. Conductive performance: Under the conditions of ambient temperature of (25±5)℃ and relative humidity of 60%~70%, the surface resistance test resistance value of the tube body is ≤ 3×108Ω B. Flame retardant performance: After burning with an alcohol blowtorch, the arithmetic mean of the flame burning time is ≤3s, the arithmetic mean of the flameless burning time is ≤10s, and the flame extension length after burning is ≤280mm 2. The total average molecular weight of the tube body is ≥5 million 3. The tube body is made of ultra-high molecular composite material, which has self-lubrication, wear resistance and non-adhesiveness. After precision mold processing, the surface of the tube body is smooth and does not require lubrication, does not absorb impurities and materials, and greatly reduces the friction between the roller tube body and the tape 4. Wall thickness ≥12mm, the cylindricality of the tube is Within 0.15mm, outdoor UV aging resistance>10 years 5. No brittle cracking, softening, deformation when used at -60℃-100℃, resistant to rapid cooling and heating, temperature difference ≥300℃ 6. Tensile strength (σb/MPa) ≥60, elongation (8δ/%): ≥130, hardness (LX-D): ≥100, yield strength ≥ 53Mpa, simulated friction coefficient ≤0.022, bending strength (MPa): ≥80 7. Impact toughness ≥2.01KJ/cm², the two ends of the roller tube body are pressed to 100kN impact and no cracks can appear 8. Appearance quality: There are no cracks, scars, folds, delamination, bubbles and other defects on the surface of the tube body, the surface color is uniform, and the tube body is not produced with recycled materials 9: Corrosion resistance: In the normal production environment of the mine unit, it is not subject to physical and chemical corrosion, and stress corrosion cracking will not occur
2	Bearing seat	Injection molding flame retardant material	1. Wear-resistant, flame-retardant, anti-static 2. Anti-stamping ability> 40KN 3. Non-metallic tube and bearing seat adopt nano-welding technology, and the welding point will not crack under 100KN stamping 4. The bearing end cover adopts flame-retardant material formed by injection molding
3	Bearings	Imported bearings	SKF products are used, deep groove large clearance bearings are used, and they comply with the provisions of GB/T276-94. They have small resistance, good self-aligning performance, long life, energy saving and consumption reduction. They belong to the special series of bearings for coal mines.
4	Spindle	45# steel smooth pull shaft	1. Mechanical and physical properties are higher than Q235-A 2. The processing adopts the one-time processing and molding method at both ends of the shaft, and the surface accuracy is within 0.020mm (the upper difference does not exceed +0.02mm, and the lower difference does not exceed -0.005mm) 3. The outer diameter tolerance of the roller shaft and the bearing assembly part is js6
5	Seal	HDPE	1. The seal adopts a double labyrinth non-contact design, combining the built-in bidirectional labyrinth seal and the external redirection new seal. Precision assembly can achieve three-level sealing (outer seal, double labyrinth seal, grease seal). The multi-layer sealing technology protects the built-in bearing from dust, water and various dirt. It cooperates with the bearing seat to achieve a non-contact rotation structure, effectively reducing the rotation resistance. 2. Water immersion test, the water inflow is almost zero 3. The sealing end face of the seal has no defects such as cracks, scratches, and pores
6	Outer cover	Enhanced flame retardant ABS	1. Wear-resistant, flame-retardant, anti-static, low noise 2. Good sealing performance
7	Grease	Lithium grease	1. Fill 2/3 lithium-based grease inside the open deep groove ball bearing and the labyrinth seal to ensure long-term lubrication of the roller 2. Use long-lasting No. 3 lithium-based lubricant 3. If the ambient temperature is below -25℃, use low-temperature grease

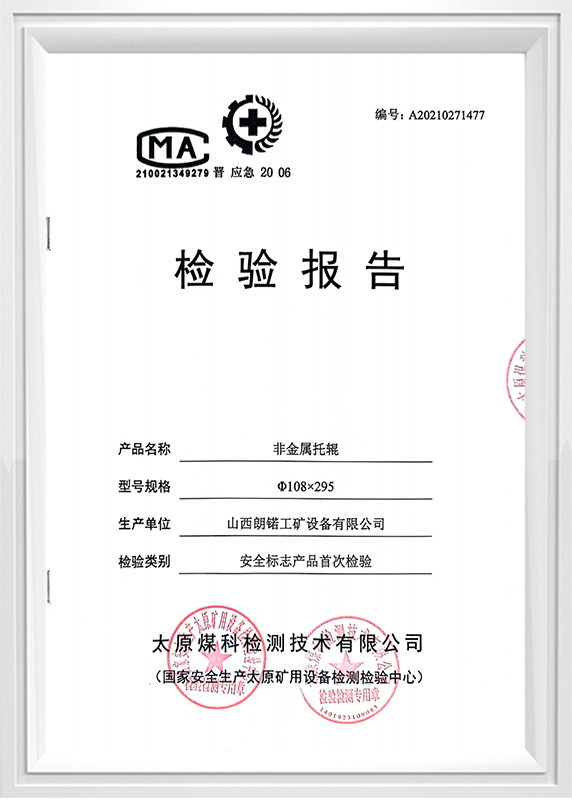

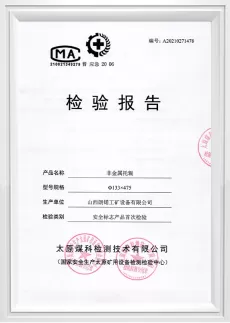

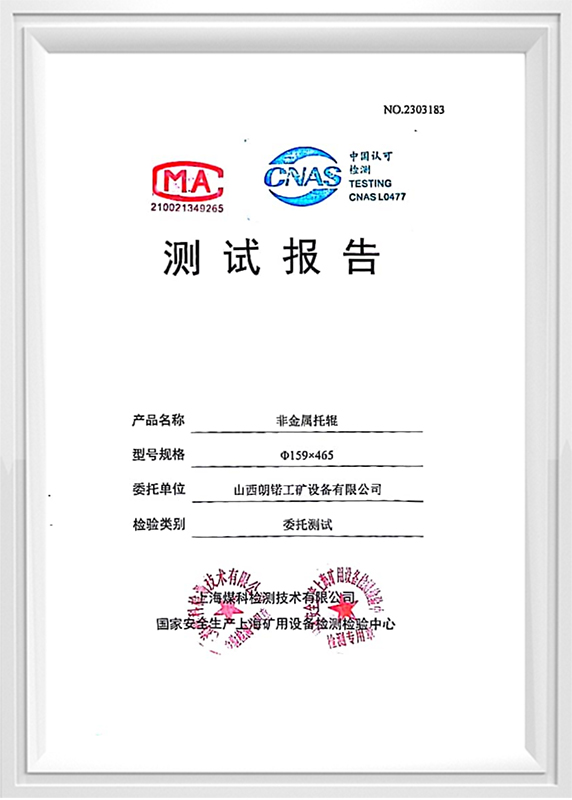

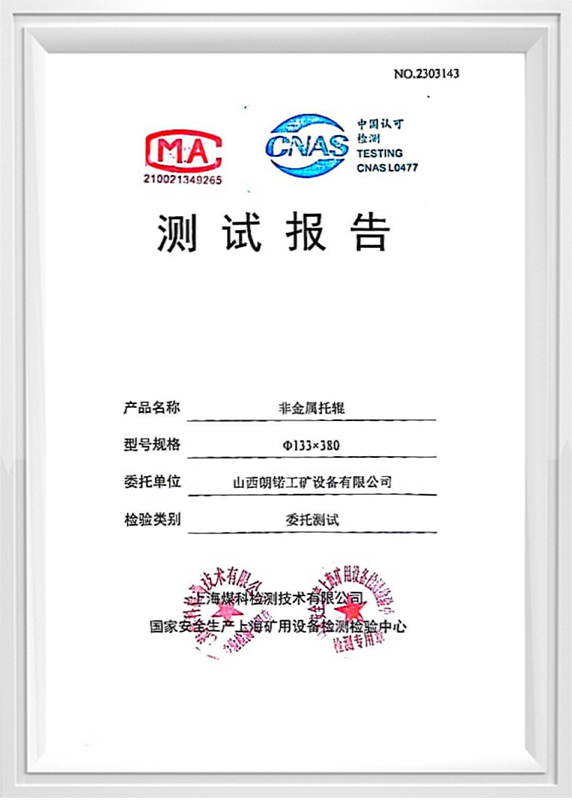

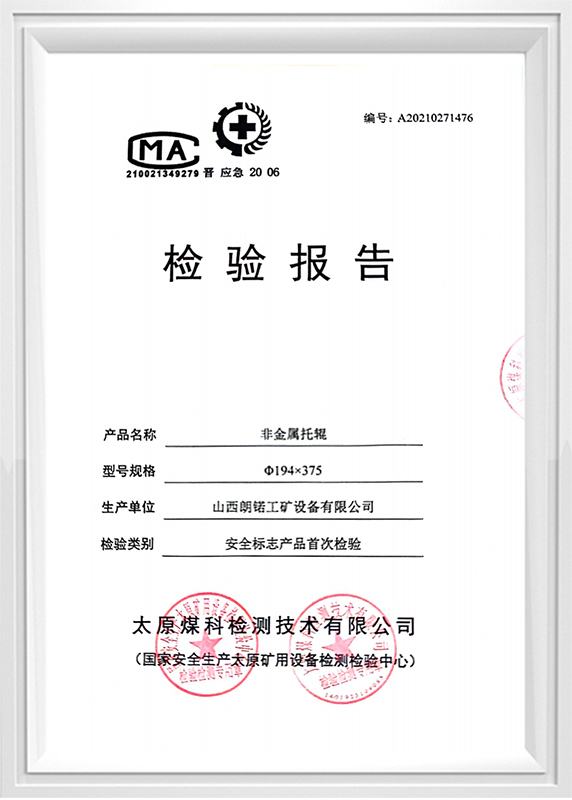

8	Service life	/	The service life of our company's non-metallic rollers under normal use conditions is ≥50,000 hours. According to feedback, the damage rate during use is ≤10%. The test report is attached.

According to the factory inspection regulations for rollers, our non-metallic damping rollers are inspected by our inspectors before leaving the factory: the axial load is ≥40000N, under the axial load of 500N, the axial play of the roller is ≤1.2mm, the radial runout of the outer circle is ≤0.6mm, the rotational resistance is ≤14N, the axial displacement is ≤0.25-0.3mm, after the roller runs at a speed of 1450r/min for 200h, the content of coal dust entering the bearing grease does not exceed 0.8%, after the roller runs at a speed of 1450r/min for 24h, the water inflow does not exceed 150g, and the waterproof and dustproof performance meets the requirements of JB/ZQ8008-88.

Package

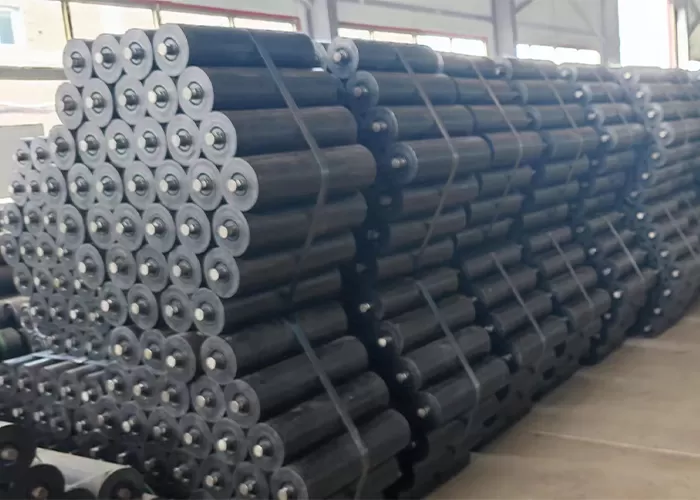

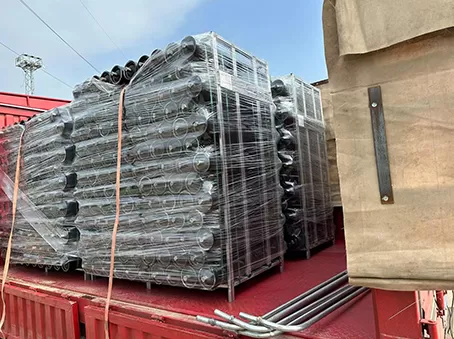

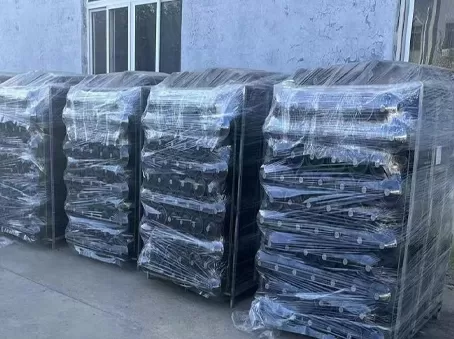

In order to enhance the safety and reliability of the goods during transportation, we first pack the goods with packaging film, then bundle them and fix them with customized steel frames for transportation, thus avoiding the goods from being contaminated by dust during transportation.

The logistics method is subject to negotiation results.

Each package box should be accompanied by packing documents inside and outside, which must include but not limited to a detailed list of goods, stating the name, specifications, quantity, name of the work site and necessary technical documents of the goods. In addition, each package box should also be accompanied by a product certificate of conformity.

Ingredients materials

Non-metallic rollers are mainly made of polymer composite materials. These materials have excellent flame retardancy, wear resistance, acid and alkali resistance, oil resistance, corrosion resistance and other properties, allowing non-metallic rollers to operate stably in harsh environments. In terms of manufacturing technology, non-metallic rollers use advanced injection molding and other processes to ensure product accuracy and surface quality.

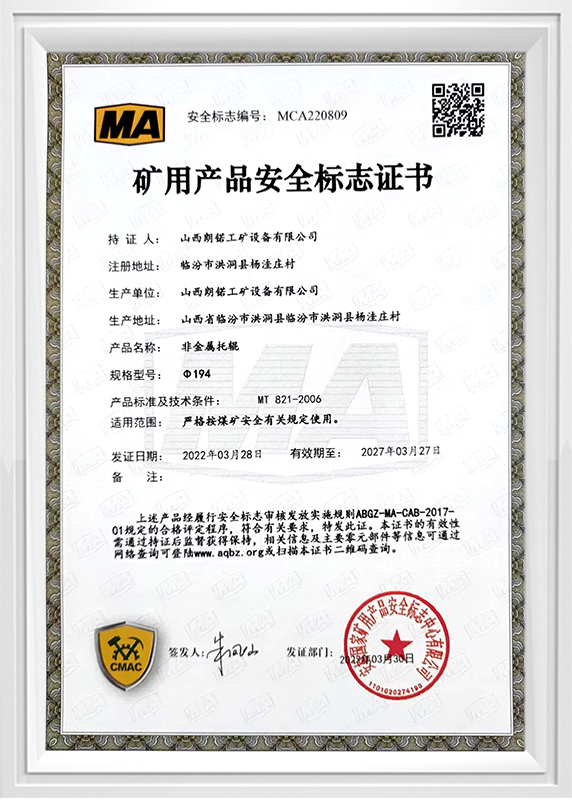

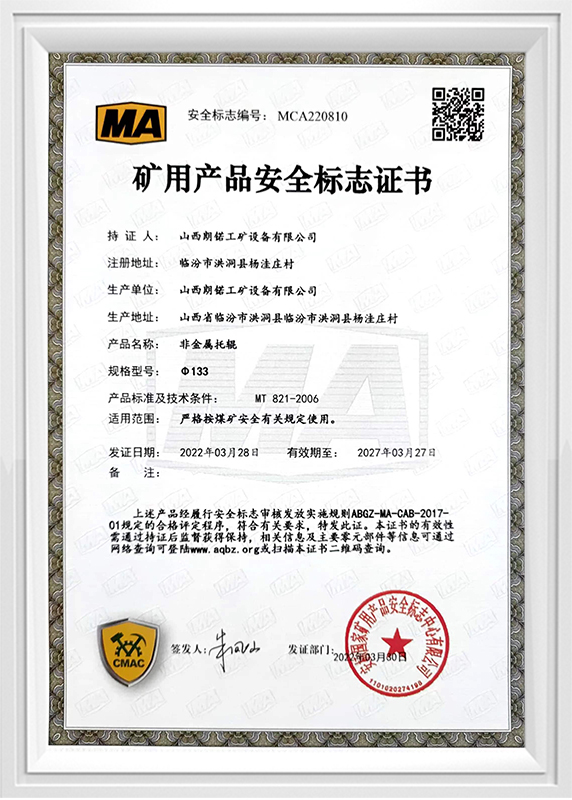

Safety Mark Certificate for Mining Products
